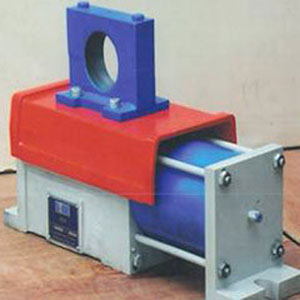

AUTO GUIDES
Specification
- Air Pressure reqd: 6 bar
- Air Consumption:0.2CFM at Ps =4 bar
- Stroke at roll centre: 80mm
- Force available at roll centre at 600 kgf
- Range of contact Pressure at Palm (can be set): 1 OOgram
- Overall size: length x width x height (Excluding palm assembly):(516xl40x(190 + D)ht.)
- Weight: 50 kgs
Features
- Based on world famous SWISS design. Mounting dimensions identical to E+L
- No sliding parts to wear, Roll weight taken by roller bearings at zero-speed -consequently long life.
- Low initial cost, low running cost, no maintenance.
